KCRM 2022
PANE and detector coordinates for KCRM 2022
KCRM 2022 as a PDF file
Please see the link in this sentence for the sake of
nomenclature of the KCRM 2022 detector amplifiers.
The detector in KCRM 2022 is backside illuminated.

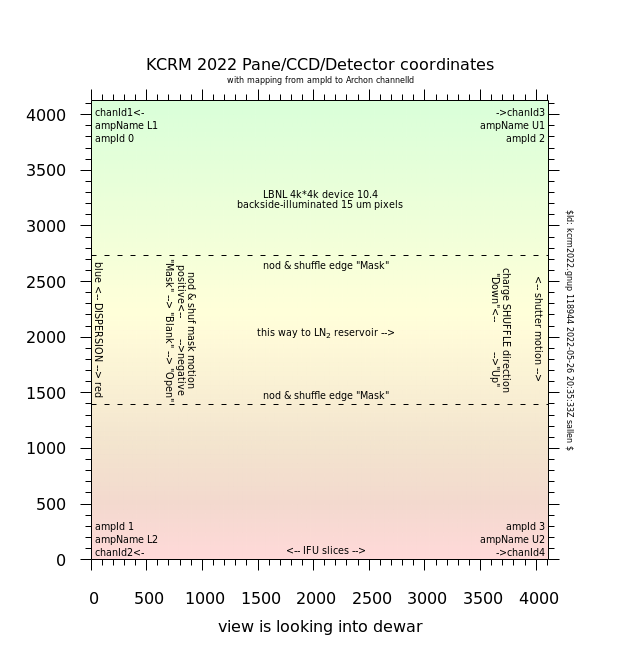

This diagram is a synthesis of the contents of what should be
several separate diagrams and documents.
These diagrams documenting the KCRM focal plane
should not include
-
the device names of the CCD
-
the designations of the video inputs
-
the designations of the amplifier types
-
the PANE coordinates
This is a draft. It all deserves double checking.
Please let me know if you find anything that seems awry.
The extra information in this diagram includes
-
the names of the amplifiers on the LBNL 4k*4k CCDs as they are
described in the spec sheets for those detectors
-
the names of the Archon channel Ids as they are connected via the
current permutation of video cables
Steve Allen <sla@ucolick.org>
