2D runs with 10cm resolution
All of the images below are from a build date of 09/29/08 and all have a
resolution of 10cm. "Full domain" refers to a simulation that was 2560cm x
2560cm allowing for a large buffer region below the helium interface -
"small domain" refers to a subsection of the full domain with range:
880cm ≤ x,y ≤ 2160cm.
In the full (small) domain, the helium transition is initially at 1830cm
(950cm).

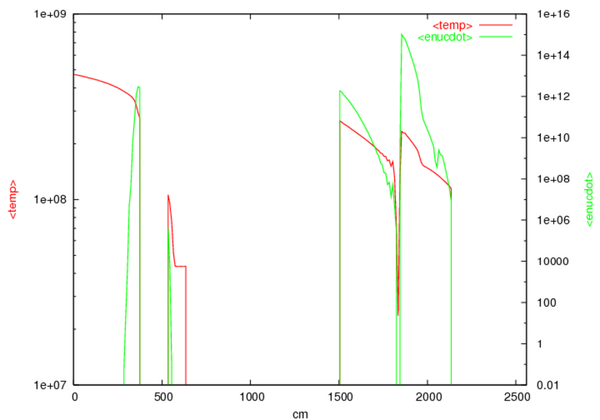

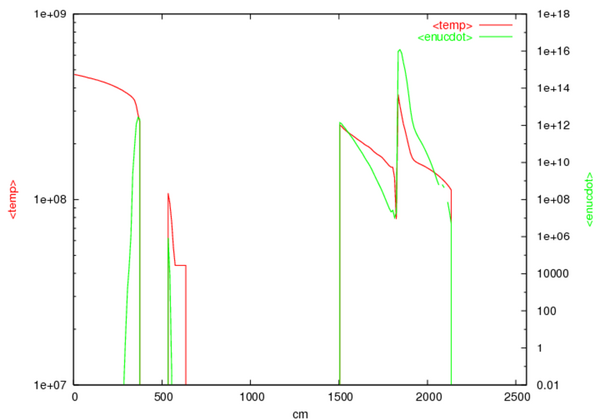

Note that the plots of avg. temp and enucdot for the 2-level, full domain runs are a little messed up. There is a bug in my averaging routine that for some reason only has an affect on these runs - I'm currently looking into this.
I'll organize this a bit better, shortly.
Runs with thermal diffusion turned off are almost finished up...
levels | domain | evolve_base_state | use_thermal_diffusion | X(He4) in logscale | average temp and enucdot |
---|---|---|---|---|---|
1 | full | T | T |
![]() |
![]() |

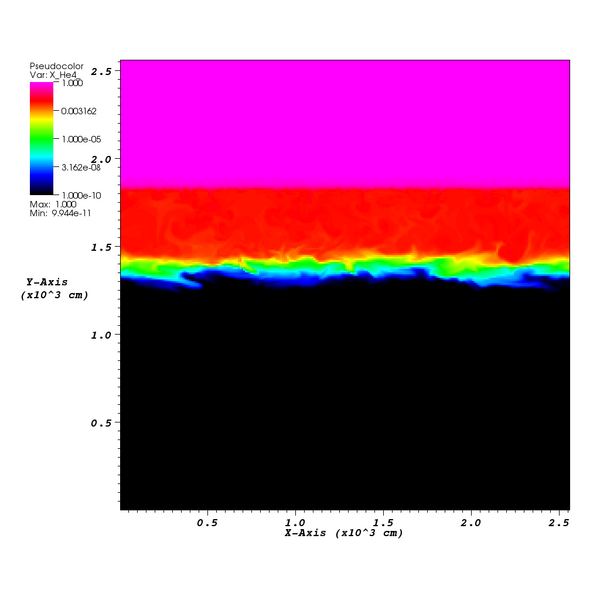

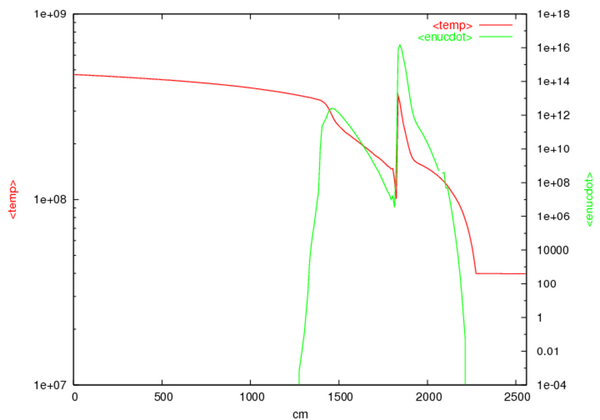

1 | full | F | T |
![]() |
![]() |

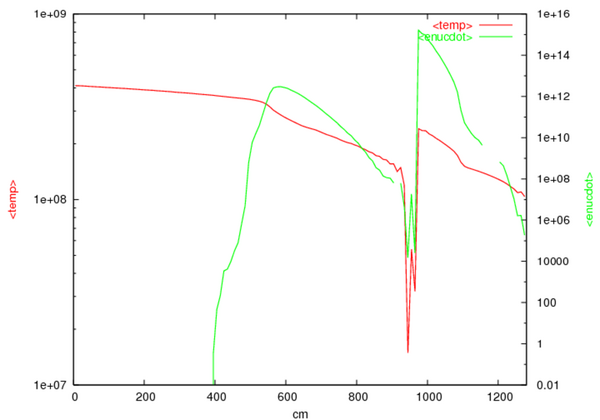

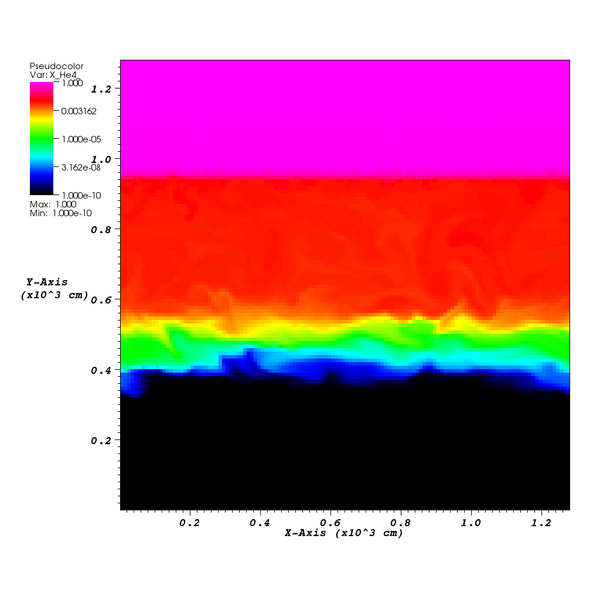

1 | small | T | T |
![]() |
![]() |

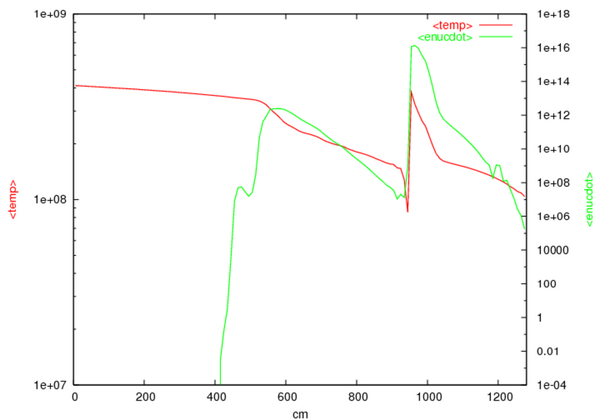

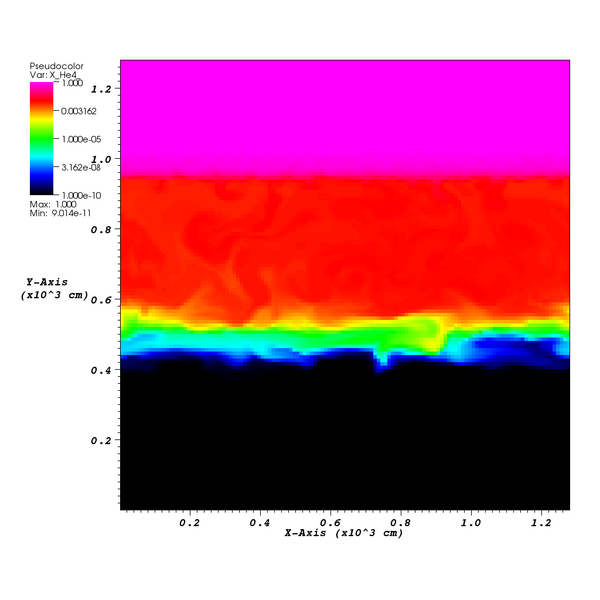

1 | small | F | T |
![]() |
![]() |

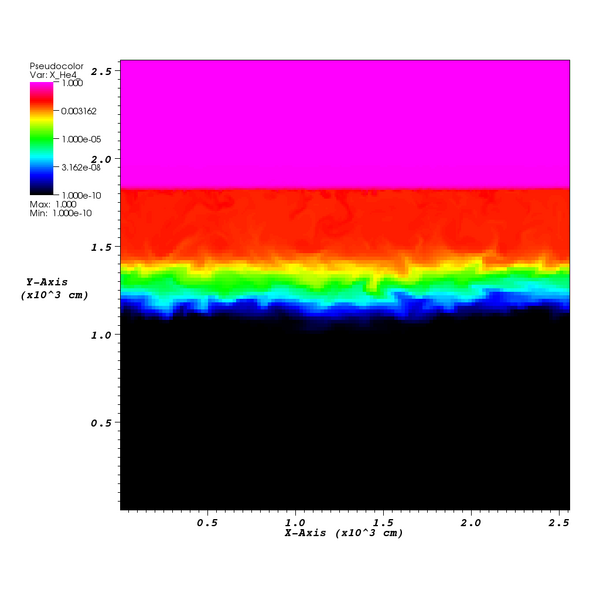

2 | full | T | T |
![]() |
![]() |

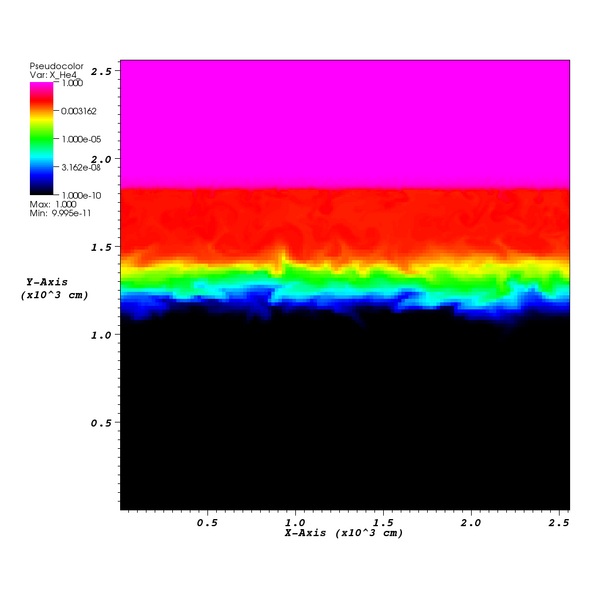

2 | full | F | T |
![]() |
![]() |

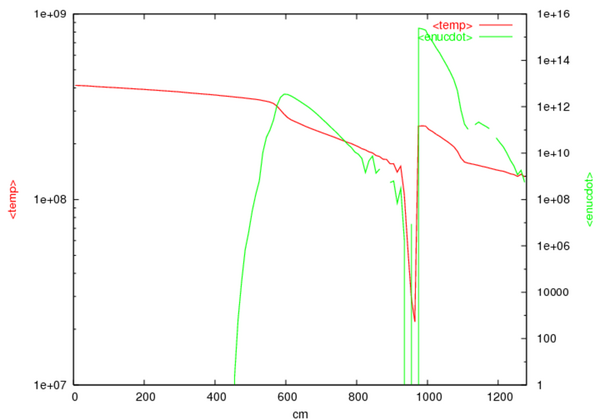

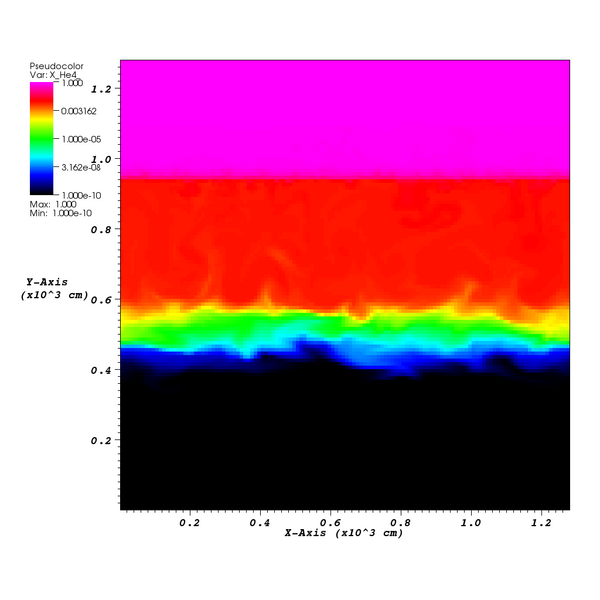

2 | small | T | T |
![]() |
![]() |

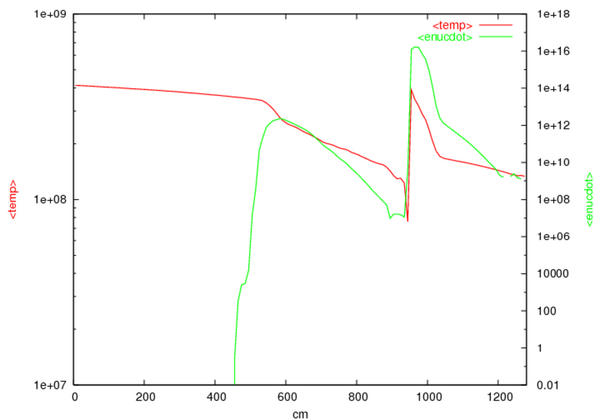

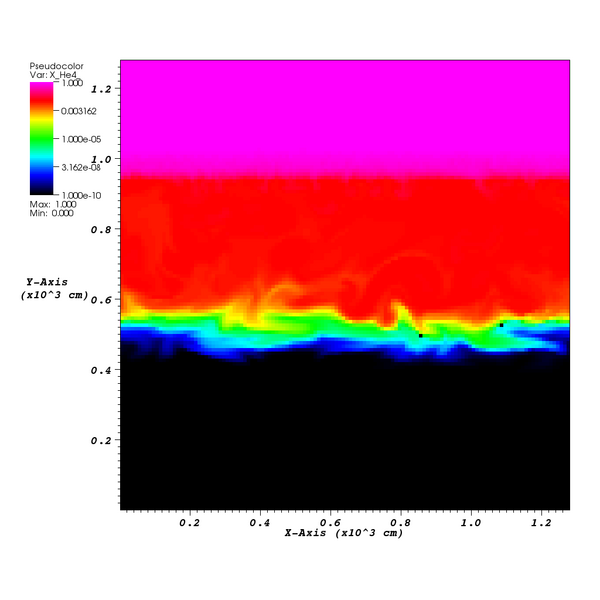

2 | small | F | T |
![]() |
![]() |
