XRB Paper Data/Progress - Resolved 0.5cm Run on Franklin

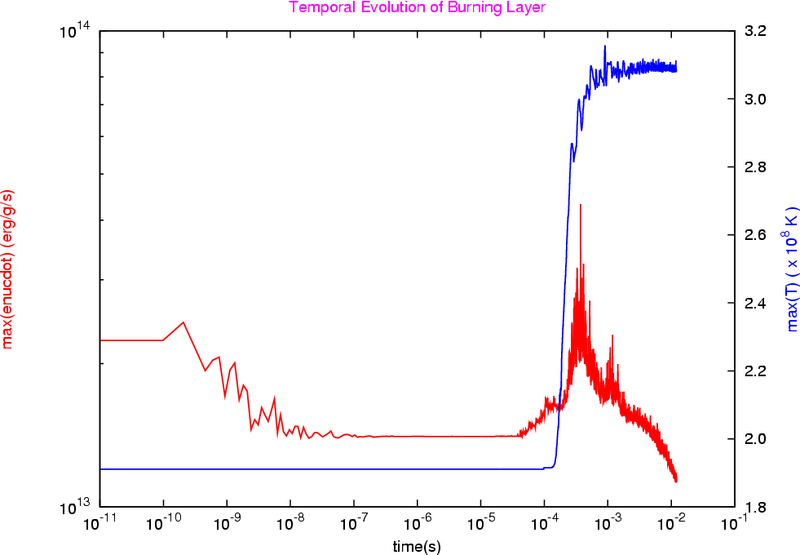

Below is the temporal evolution of the maximum enucdot and the maximum temperature in the Helium layer, defined arbitrarily to be where X(He4) >= 0.1.

Some movies of various quantities for the first 6.0 ms of evolution are shown below:

• Carbon Mass Fraction - color range is logarithmic in [1e-10,1] from blue to red
• X-Velocity - color range is [-4e6,1e7].
• Vorticity - color range is from [-5.e5,2.e6]
